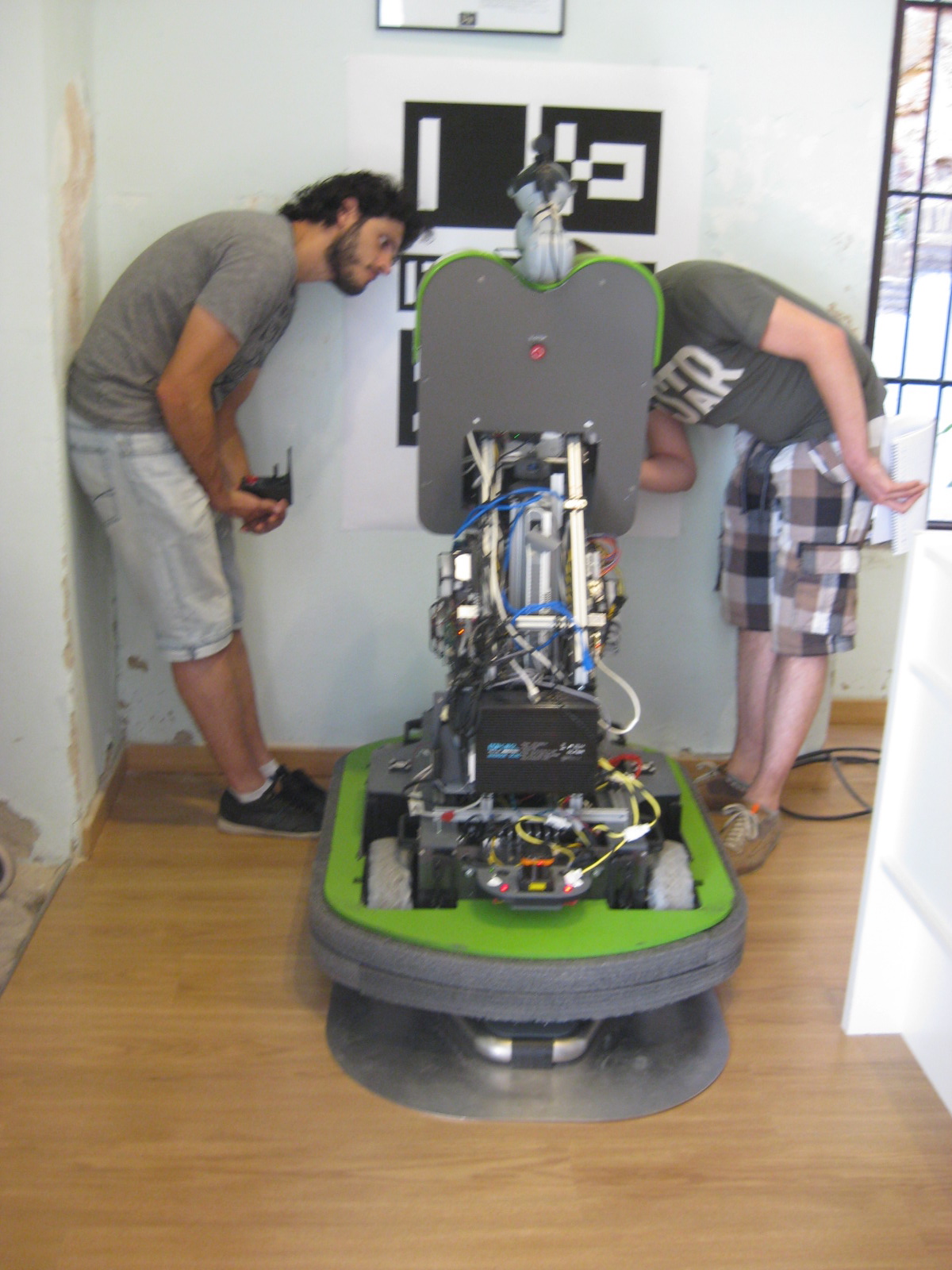

Lab setup for docking sequence


FROG navigation marker

The UPO research team has made a mockup of the space where the FROG will go to recharge. UPO is finalizing their implemention of the docking sequence.


After testing, the docking station will be placed in the shop near the entrance of the Royal Alcazar. This will be the FROG’s base for all of next week. When it is running low on power, the robot will return to the shop, align itself to the docking station and drive on to recharge its batteries.


This lab has a view of the Tennis Courtyard of the Royal Alcazar and the tower of the cathedral.


Lab setup

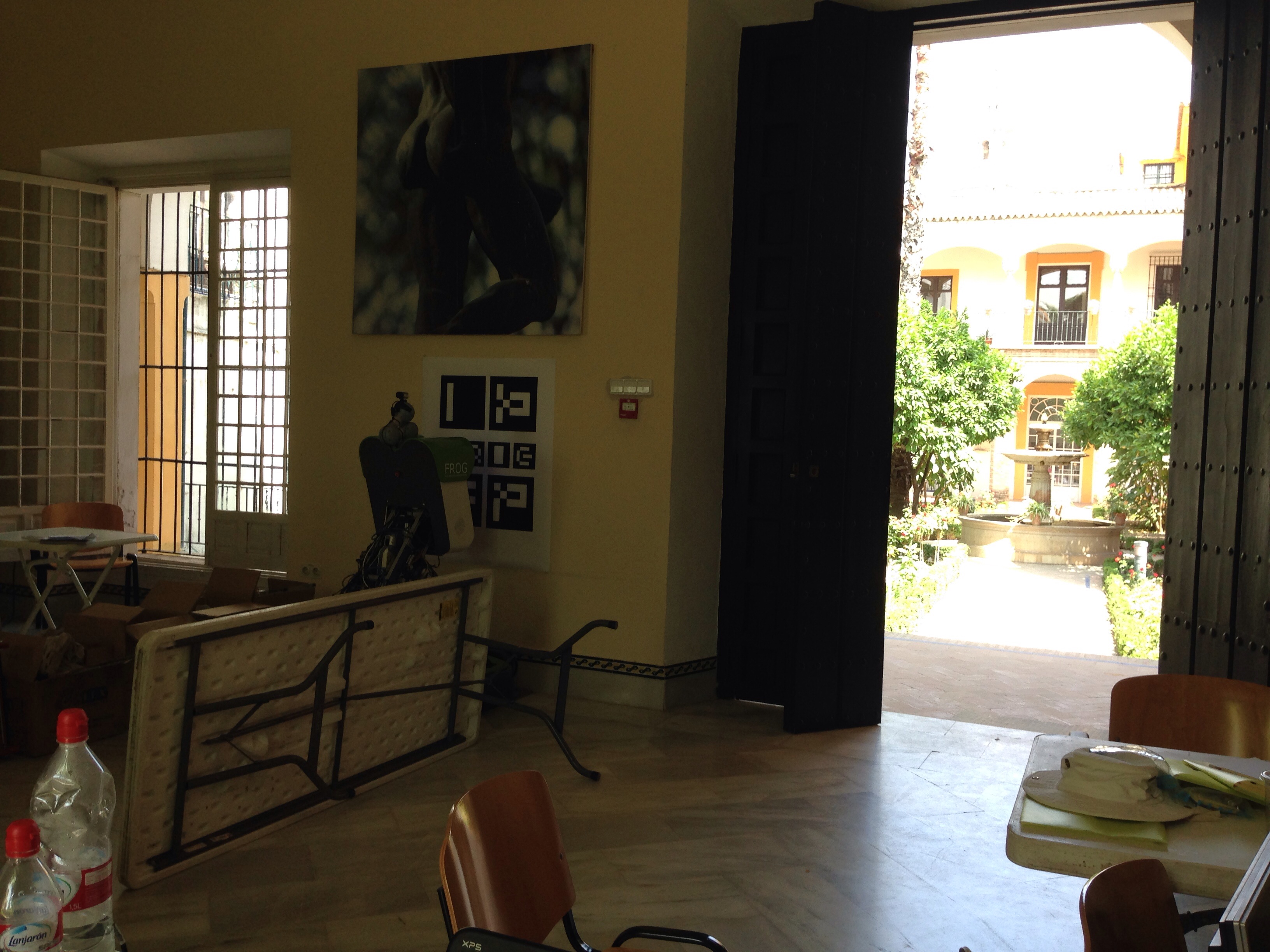

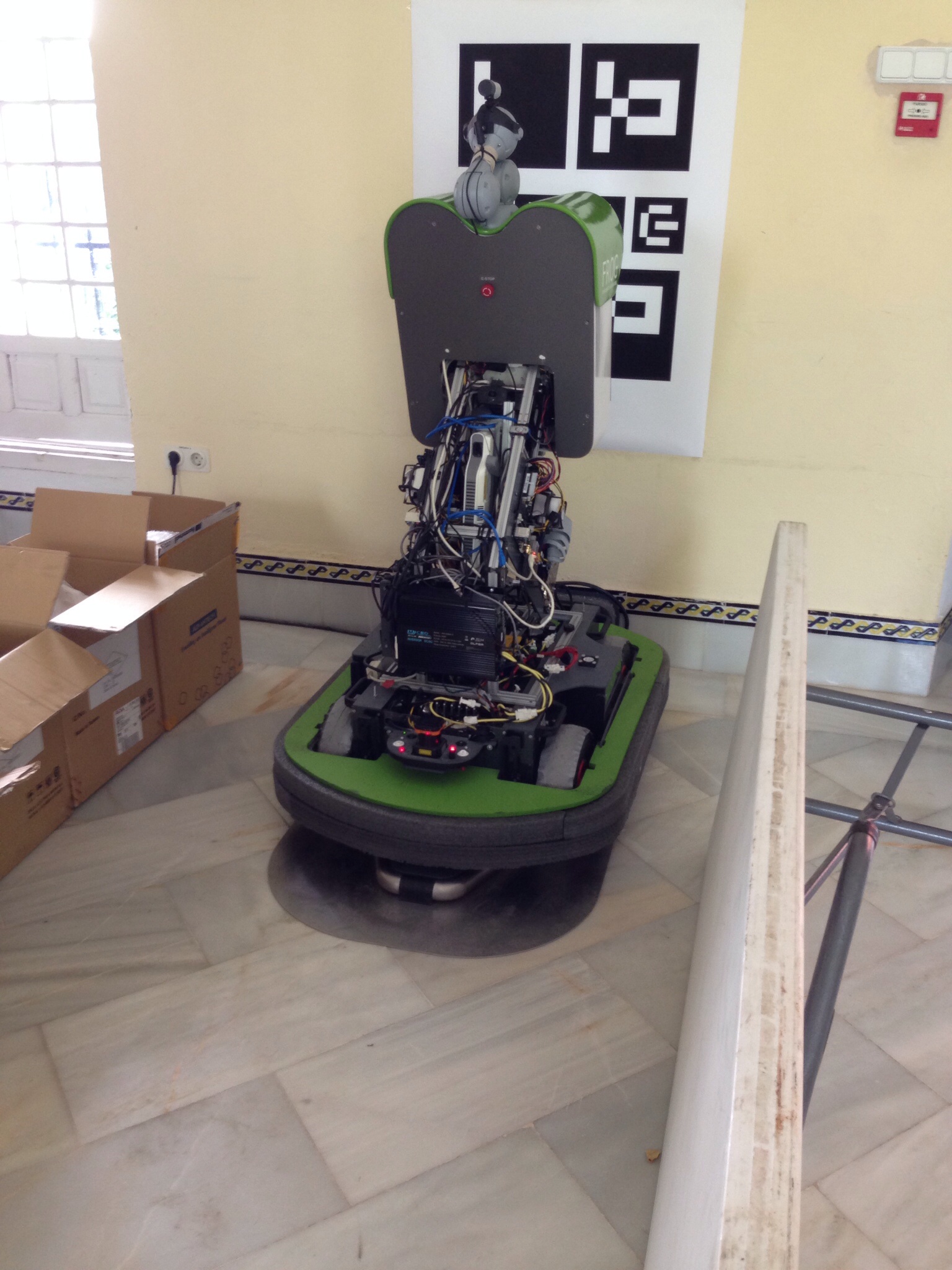

The real thing
The real thing

Point of Interest

new POI-0
new POI-0

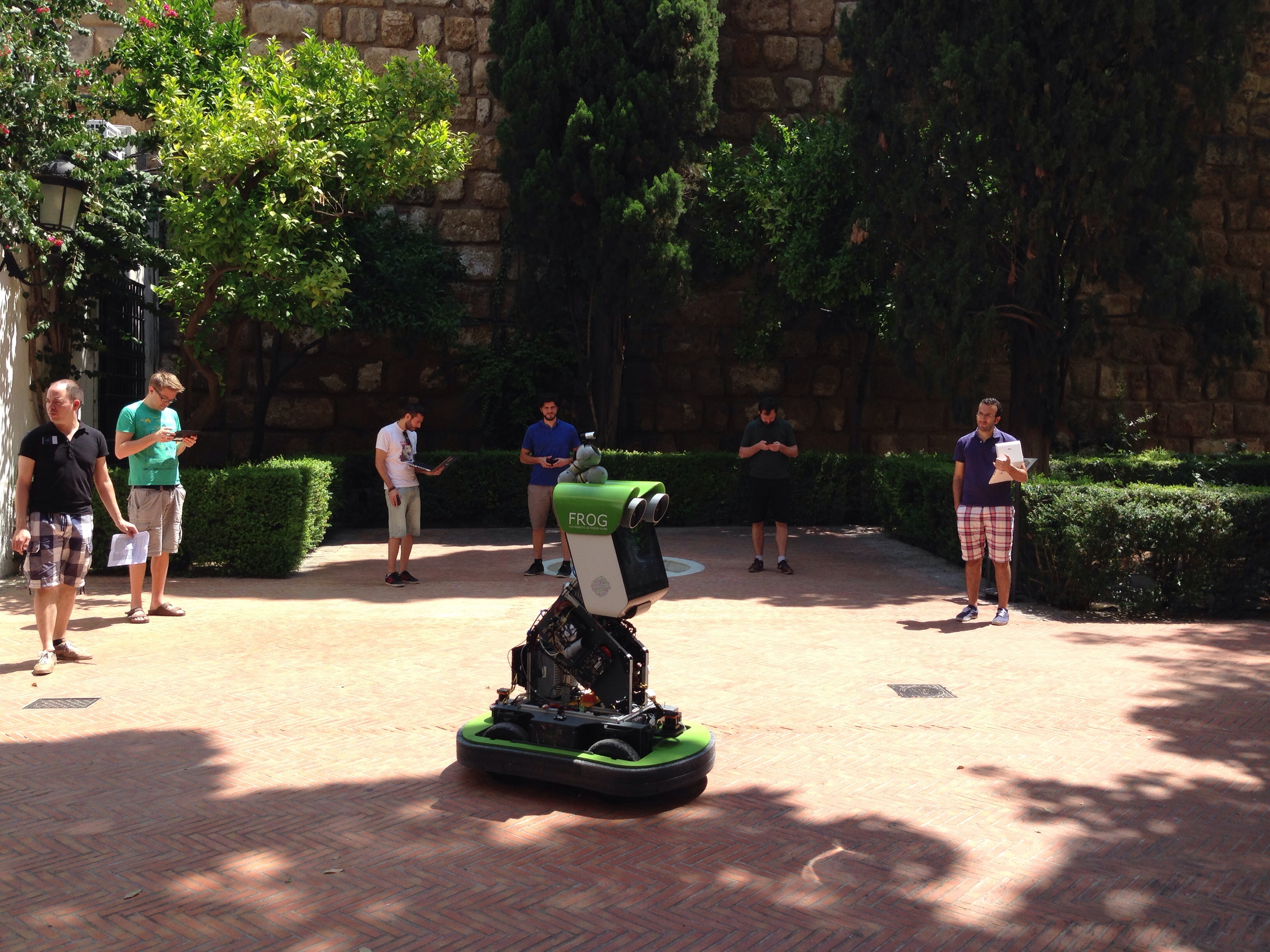

Recalibrating the first location of the tour after what had looked like a promising position to place the robot turned out to be a fountain. This is one example of the small matters that have to be checked on location during integration sessions. The location was pinpointed for use by researchers from the Netherlands on a map generated by the researchers from Seville.  The map was good enough to show a feature – local knowledge was required to know what the feature was. And the correction took only seconds once a perfect spot had been chosen.

Fountain in the Lion's Courtyard
Fountain in the Lion’s Courtyard

new StateMachine for FROG

Me and my FROG


Next week the FROG robot will be back in Seville to test the new StateMachine, autonomous missions and the docking sequence for recharging the batteries between missions. There will be some playful content for the demo runs and the researchers will be collecting more material for expanding this to a full tour for the Final Event to be held in September 2014.
